Tables
Is a table the right solution?
Tables should only be used to display data that needs to be aligned in rows and columns to be meaningful and easier to understand. With the rapid growth of mobile web access, we need to consider the user experience across device sizes. If you create a table, be sure to first view the page on a phone or reduce the width of your browser window to simulate a mobile view. At this point evaluate if a table is the best solution for the content.
Note: Always apply the tablespecial style to your tables to enhance the visual display and improve usability, including a horizontal scrolling feature on smaller devices. You must also ensure your table is accessible by including table headers and a table caption.
Tip: If you would like a more consolidated view of your content when your visitors first land on your page, you may want to create a collapsible list. That feature is created using a table, but applies a custom presentation style.
Insert/Edit a Table

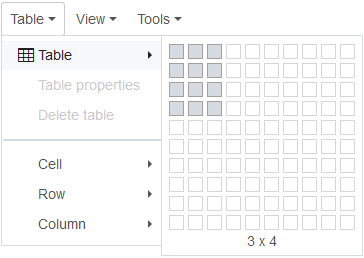

Place your cursor where you'd like to insert a table, open the Table menu () and select Table. Highlight the desired configuration of rows and columns and click the grid to insert the table. You can also right-click anywhere in your content to insert a table.
Place your cursor in an existing table and open the Table menu () to access the table properties dialog or delete the table.
Tip: Do not resize your table by clicking and dragging the corner element. As you enter content in the cells the table will size itself automatically, ensuring an optimized layout across device and browser sizes.
Table Editing Quick Actions (Left Click)
Left-click in any table cell to open the available quick actions:
- Table properties
- Delete table
- Insert row before
- Insert row after
- Delete row
- Insert column before
- Insert column after
- Delete Column
Table Editing Sub-Menus (Right Click)
Right-click in any table cell to bring up additional table editing options. From here you can insert, delete or merge individual cells, rows and columns, or delete the table.
Table Properties and Styling

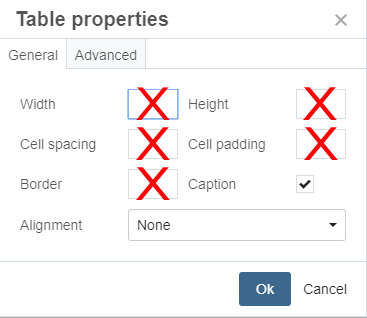

Most settings in the Table properties dialog should not be used. Instead, apply the tablespecial format. This will style your table to complement the website's design:
- Select the table by placing your cursor within the table and clicking "table" in the path display at the bottom of the editor.
- Open the Formats sub-menu, and select Custom > tablespecial. See an example table.
Table Headers
The cells in a table's first row, first column or both should define or label the data included in that column or row. To set a cell as a "Header cell" you will need to modify the cell's properties. Once modified, these cells are styled in a darker color with a more prominent font. In addition, for those using a screen reader, the header is then announced before the data in each cell of that row or column.
To set a cell as a header cell:
- Right-click on the cell and select Cell > Cell properties
- Toggle the Cell type field to Header cell.
- Set the Scope field to Row, Column, Row group or Column group — this defines for screen readers which cells in the table the header applies to.
Table Caption
Open the Table properties dialog box and use the Caption checkbox to turn on the accessibility caption field at the top of your table. In the field that appears at the top of your table, fill in a descriptive caption for screen readers. Your caption should include explanations for any content or formatting anomalies that you believe will cause a challenge for those using screen readers. Note: The table caption is only presented to screen readers and will not be visually displayed on the submitted or published page.
Example table captions:
- A two-column table presenting a break down of William & Mary's tuition and fees.
- A three-column table with header cells in the first row.
- A single column table of collapsible content for formatting purposes.
If you miss this step, the automatic Content Checker will report the issue and let you provide the caption when you submit the page.
Table Style Examples
Default Table Style
The example below shows how your table will appear until you apply the necessary tablespecial style. Do not leave a table with this default style.
Table Cell Contents |
Table Cell Contents |
Table Cell Contents |
Table Cell Contents |
Table with the tablespecial Format Applied
The example below shows the same table, now with the tablespecial style applied. Once this style is applied you can modify your table further — be sure to next add header cells to define the columns or rows of data.
Table Cell Contents |
Table Cell Contents |
Table Cell Contents |
Table Cell Contents |
Table with the tablespecial Format and Header Cells to Define the Columns
The example below shows the same table with cells at the top of each column set as header cells with the Scope field set to Column.
Sample Table Header | Sample Table Header |
---|---|
Table Cell Contents | Table Cell Contents |
Table Cell Contents | Table Cell Contents |
Table Cell Contents | Table Cell Contents |
Table with the tablespecial Format and a Header Cell to Define a Group of Columns
The example below shows the same table with the cells in the first row merged into a single cell to define a group of columns. To create this effect, highlight the cells you wish to merge, right-click within them and select Cells > Merge. Next, set the merged cell as a header cell with the Scope field set to Column group.
Sample Merged Header Cell | |
---|---|
Table Cell Contents | Table Cell Contents |
Table Cell Contents | Table Cell Contents |
Table Cell Contents | Table Cell Contents |
